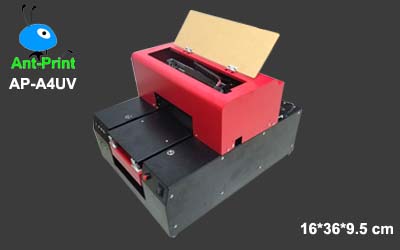

A4 UV printer

Model: AP-A4UV

Ink type: UV ink

Application: phone case, pvc cards, ball pens, CD/DVD, charger, wood, glass, acrylic, metal, ceramic etc.

Printer head: Original Epson L800

Speed: 111s for full A4 size printing

A4 size UV printer is the smallest UV flatbed printer, which is a kind of inkjet printing machine that can print on most materials directly.

Printer Model AP-A4UV
Printing Technology Advanced Micro Piezo 6 color pigment inkjet technology
UV Ink colors (6 colors) cyan, magenta, yellow, black, white, white
Printing speed 2880 dpi 111 seconds/A4 size
Cooking system Water cooling system + Heat sink
Print  head Epson L800/T50/R330
Max resolution 5760 *1440 dpi (highest resolution)
Max Printing Size A4 (160mm×360mm)
Max thickness 95 mm
Height adjustment Automation/Printer head protection board
Printing Software Special RIP software
Surface Temperature(UV Lamp) Lamp surface 60 degree, 40 degree/1cm
Transparent Date USB2.0 high speed
Voltage/ Power 110-220V / 30W
Printer head Protection Intelligent Self Protect System
Ink type UV ink
Printhead cleaning way Automatic / clean by manual if block seriously
Ink system CISS built inside (70ml-100ml per color)
Ink consumption 10 ML/SQM
Computer system Windows7/98/me/vista/2000/07/09/XP/MAC/NT
Working environment 10-35 degrees
The way to add ink CISS (add the ink into bottle directly)
Accessories USB line, software-driven, power lines, product manual cleaning and ink adding tools
Net /Gross /volume weight 30/ 35kg / 35kg
Printer/packing size 56*49*40cm/69*56*44cm
Packing materials Wood case (Fumigation free)
Special Remarks Customized service is available
Language English, Chinese
