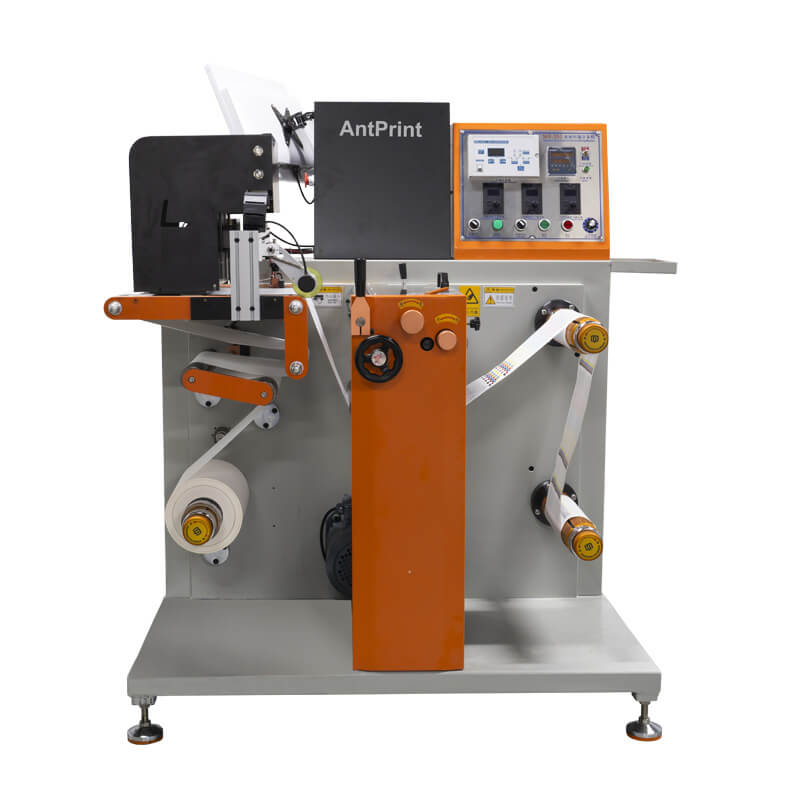

Roll To Roll Food Printer Edible Paper Prints Machine
Fast Speed Continue Edible Food Printer
AP200-RollPro is the roll to roll edible continue printing machine, with edible ink CMYK printing, it can print any picture or text on the edible paper or food grade paper directly. If you want to print on the food grade paper roll to roll, AP200-RollPro will be the great business partner with you!
AP200-RollPro Roll To Roll Paper Food Printer Features
- High-speed customized printing;
- Roll-to-roll continuous printing;
- Edible CMYK ink color printing;
- Built-in computer;
- Independent board;
- Food grade ink & continue ink supply system.
AP200-RollPro Food Printer Main Features
- I3200 Print Heads * (1-10pcs);
- Max printing speed up to 40m/minutes;
- Resolution 1200*600dpi;
- Width Format up to 32cm.
- Max printing thickness 5cm.
- Ink supplier system: continue ink supply system with 5L big tank.
Welcome to send inquiry to us, we will reply you within 1 hour!
AP200-RollPro Parameter
| Product Name | Roll to Roll inkjet printing machine | |
| Printhead Model | Epson Industrial Printhead i1600 i3200 | HP industrial nozzle |
| Nozzle Number | 1 or 2 pcs printer head (selectable) | |
| Resolution | 300*300/300*600/300*1200 dpi | 1200*300/1200*600/1200*1200dpi |
| Inkjet technology | ALL MEMS /VSDT | thermal jet |
| Print width | 30cm | A4（21、42、63cm）A3（30、60cm） |
| Feeding width | 35cm | |
| Print height | 5mm（Support customization） | |
| Feeding method | Automatic retraction | |
| Roller diameter / Length size | 7.6cm (we can custom from 6-12cm size) / 47.5cm | |
| lnk | Environmentally friendly odorless pigment ink | |
| lnk supply | Multi-layer filter/secondary ink cartridge thermostat/negative pressure ink supply | |
| Print speed | 20-40m/（min） | |
| Fuselage structure | Steel frame structure gantry milling | |
| Power requirements | 220VAC 50Hz 2000W electricity consumption (maximum power) | |
| Print mode | Onepass Printing | |
| Printer / packing size | 145*95*135cm | |
| Waste ink bottle size | 2-5L (accept custom) | |
| Printer / packing weight | 250kg/275kg | |

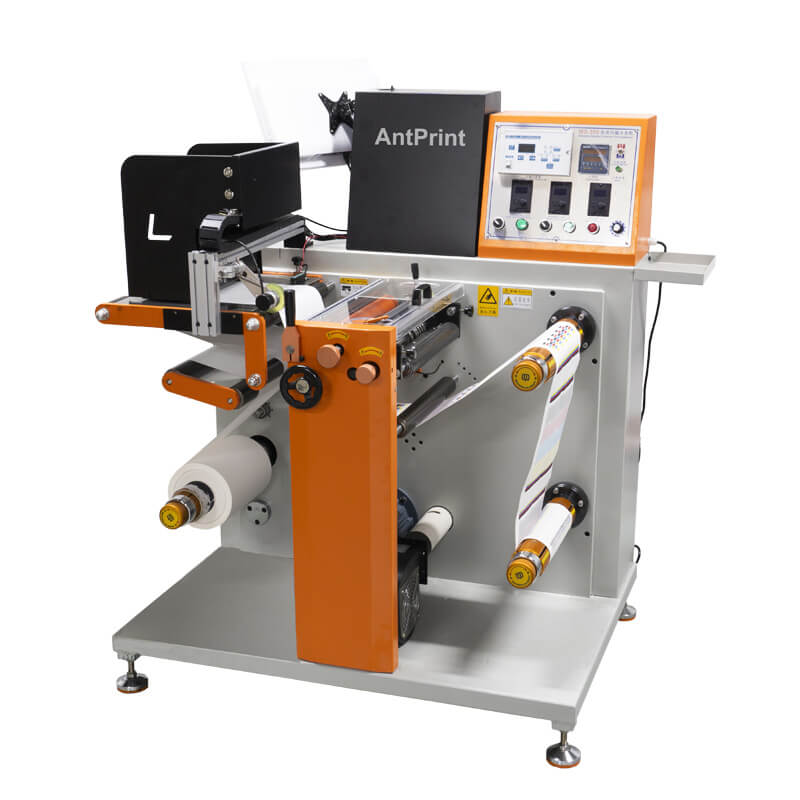

Roll To Roll Printing
Roll-to-roll printing can continuously print on long rolls of substrate materials without frequent loading and unloading of materials. This allows a large number of products to be printed in a relatively short period of time, and the printer can run continuously for a long time, greatly increasing the output per unit time and meeting the needs of large-scale production.
Fast Printing Speed
AP200-RollPro installed industrial speed Epson Printer head model I3200, which with 3200 pcs nozzles. If we install 1 pcs, it can achieve the max printing width 3.2cm, if you install 10 pcs printer head, it can help you print with max printing width up to 32cm. Here wil lbe the runn speed data as below,
- 1200*1200pi-10m / Minute
- 1200*600dpi-20m/ Minute
- 1200*300-40m/ Minute
- 1200*150-80m/ Minute
- 1200*75-160m/ Minute

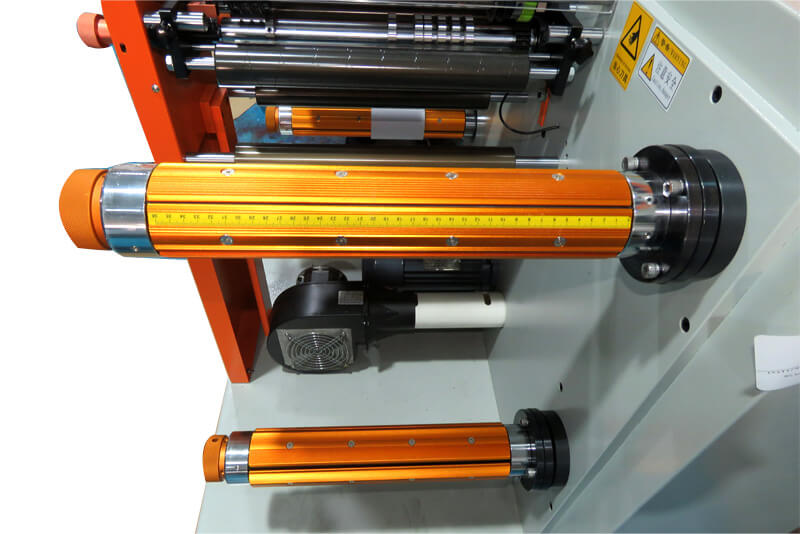

Adjustable Paper Tension
AP200-RollPro can adjust the paper tension. Reasonable tension adjustment can prevent the paper from being damaged due to excessive tension. Different types of paper have different tensile strengths. The tension adjustment function can set the appropriate tension value according to the characteristics of the paper to prevent the paper from being pulled, torn or permanently deformed during transmission and processing.

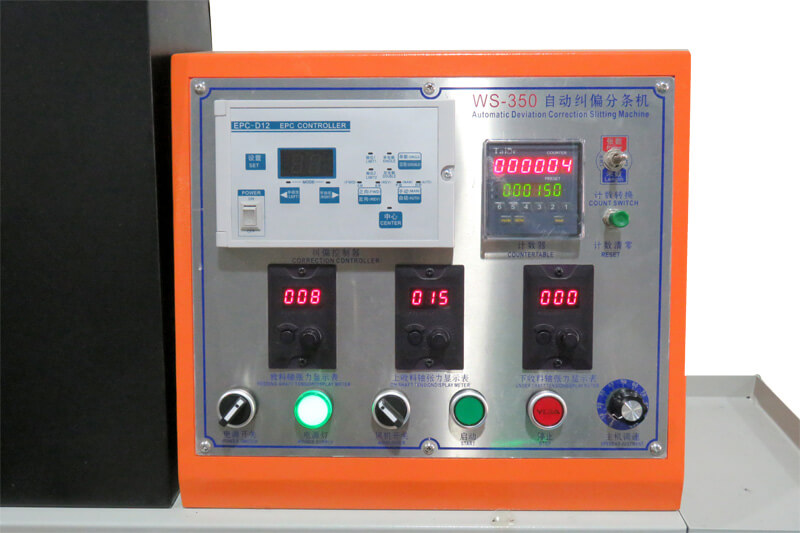

Self-correction Function For Coils
Our roll to roll printer AP200-RollPro with roll self-correction function, rewind the roll to make it look neater, and the roll diameter, tightness, etc. meet specific specifications to facilitate subsequent storage, transportation and use. The diameter and tightness of the printed paper roll can be adjusted during rewinding to make it more in line with packaging and transportation standards.
