Project Description

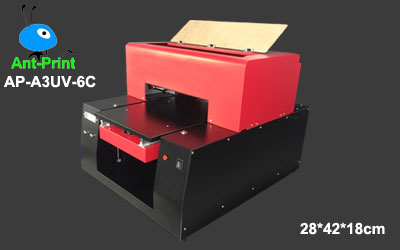

new AP-A3UV-6c uv flatbed printer

Updated Version A3 size UV printer with 6 Color

Model: AP-A3UV-6C

Printer head: Original epson DX5

Max resolution:5760*1440dpi

Printing speed: 111s for full A4 size

Contact Us

Features of Ant-Print 2018 New arrival A3 / A4 Size UV Flatbed Printer / T-shirt Printer

  • White ink circulation system, the white ink will be flowing every 30 minutes from the ink tube to the ink cartridge/damper, which will protect the printer head be blocked from the white ink.
  • High-end display screen that can help you know all the printing situation of your printer.
  • Pump Onekey: Do the ink suction automatically, no need do the ink suction by hand anymore.
  • Auto Onekey: Printer with head protection system, adjust the height automatically. It can protect the printer head from knocking, no need adjust the printing distance by hand while it is printing. After adjust the printing distance, the printer will feed your products to the printer and printing directly.
  • One “Click” to print: no matter where your printer platform is, after you put your products on the platform and click ” Print ” in the newest RIP 9.0.3 software, the printer will feed the products > adjust the height automatically > print directly. The printing is pretty easy.

Picture Show For the new arrival UV Flatbed Printer / T-shirt Printer

Detailed Parameters

Printer Model AP-A3UV-6C
Printing Technology Advanced Micro Piezo 6 color pigment inkjet technology
UV Ink colors (6 colors) magenta, yellow, cyan, black + 2 White
Printing  speed 5760 dpi, only need 111 seconds (full A4 size picture )
Object Pretreatment 98% Direct print, except too smooth material, such as metal, glass and ceramic.
Printer head Original Epson DX5-1390
Max resolution 5760 *1440 dpi
Max Printing Size A3+ (280mm*420mm)
Max Media Thickness 200MM(accept cylinder tray to print bottle etc )
Height adjustment full automation
Language English, Chinese
UV Led Power max power 100W, can be change
Printer head Protection Intelligent Self Protect System
Ink type UV color and white inks
Ink system CISS built inside (70ml-100ml per color)
Ink consumption 1L/100 QM
UV Led Temperature obverse 120 degree, distance 1cm -40degree
UV Led Cooling method Cycle water cooling + Heat sink (special cooling for extend the life of UV led )
Package Type Complete MDF Board Case+ Carton
Printer/packing size 75cm×63cm×54cm/ 85cm×73cm×74cm, around 0.46 CMB
Net / Gross weight / volume weight 55kg/65kg/92kg (add around 0.6CM height with the wooded block)
Operation System Windows 7/ 98/ Me/ 2000/ XP / XP x64 / Vista*4MacOS X10.2.8 or later (PPC & Intel CPU)
Software Photoshop,  CoreIDraw,  Illustrator, BR RIP, Micro Office etc
Standard Accessories USB line, software-driven, power lines, product manual( with vcd disk), cleaning and ink adding tools
Printing interface USB 2.0
Application Phone case, metal, acrylic, ceramic, wood, pvc cards, ball pens etc.
