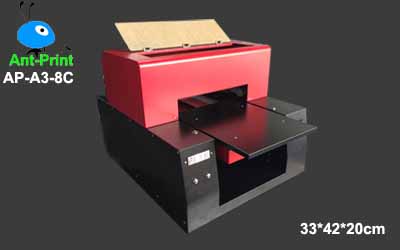

AP-A3-8C

AP-A3-8C 2017-07-13T19:04:14+00:00

Project Description

* Printer with original Epson head and Epson mainboard DX5-1900;

* Can accept 8 color;

* Fast printing speed model, just need 64s for printing A4 size picture;

Model AP-A3-8C
Printing Technology Advanced Micro Piezo 8 color pigment inkjet technology
Ink Type Textile Ink, Edible ink, eco-solvent ink
Textile Ink colors (5 colors) cyan, magenta, yellow, black, white
Edible Ink colors (6 colors) black, magenta, yellow, cyan , light cyan, light magenta
Eco-solvent Ink colors (8 colors) Photo black, black, red, magenta, yellow, cyan , orange, gloss
Printer head / motherboard Original Epson DX5-1900
Max Printing Size A3+ (330mm×420mm)
Max Thickness 200 MM
Printing  speed 5760 dpi 64seconds for full A4 size
Object Pretreatment 1)T-shirt printing: Coating first or directly print; For garment,

color fixing agent and white ink first or directly print

2)Food printing: print directly;

3)Eco-solvent printing: coating as a pretreatment;

Max resolution 5760 *1440 dpi
Printing interface USB 2.0
Height adjustment Automation
Language English, Chinese
Voltage/ Power 110-220V / 36W
Printer head Protection Intelligent Self Protect System
Ink system CISS built inside (70ml-100ml per color)
Ink consumption 10 ML/SQM
Working environment 10-35 degrees
Net /Gross/ Volume weight 65kg / 85/ 92 kg
Printer/packing size 75*63*54CM/85*73*74CM, 0.46CMB
Operation System Windows 7 / 98 / Me / 2000 / XP / XP x64 /

Vista*4MacOS X10.2.8 or later (PPC & Intel CPU)

Software Photoshop, CoreIDraw, Illustrator, BR RIP, Micro Office
Accessories USB line, software-driven, power lines, product manual cleaning and ink adding tools
Application 1)Printing on t-shirt, socks, hats etc;
2)Printing on food, eg. Cake, chocolate, macaron, cookies, candy, marshmallow, coffee and so on.
